- Product category：PDC Bits for HPG
- Name：9-7/8"HP315M3
- Product Type：09809
- Hits：1582
Introduction

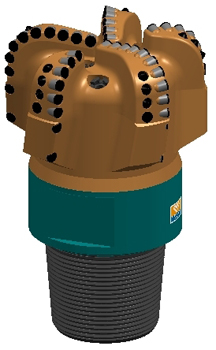

9-7/8" HP315M3/ M233
Recommended Operating Parameters
| Blade Count | 5 Sprial Blades |
| Primary Cutter Size | Ф13 mm |
| Face Cutters | Ф13 mm ( 21 ) |
| Cone Cutters | Ф13 mm ( 10 ) |
| Gauge Cutters | Ф13 mm ( 10 ) |
| Conical Cutters | Ф13 mm ( 15 ) |
| Trimming Cutters | Ф13 mm ( 5 ) |
| Nozzles | 5 Standard Series(SP) |
| Gauge Length | 2",Options available |
| Junk Slot Area | 20 in2 |
| Bit Connection | 6-5/8" API REG |
| Bit Length | Make-Up: 11.1" Overall: 16.1" |
| Fishing Neck | Diameter:7.5" Length:3.7" |
Recommended Operating Parameters
| Flow Rate | 25~45LPS |
| Rotary Speed | 60~320 RPM |
| Weight-on-Bit | 20~130 KN |
| Max. Weight-on-Bit | 150 KN |
| Make-Up Torque | 49.6~51.4KN.m |
