- Product category：Salp Jet Suction Bits
- Name：12-1/4"HS916S6D
- Product Type：12904
- Hits：1615
Introduction

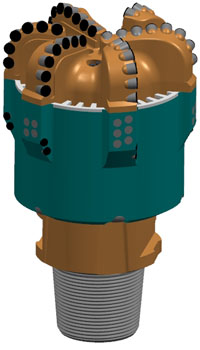

12-1/4" HS916S6D/ S323
Recommended Operating Parameters
| Blade Count | 6 Sprail Blades |
| Primary Cutter Size | Ф19 mm |
| Face Cutters | Ф19 mm ( 19 ) |
| Cone Cutters | Ф19 mm ( 13 ) |
| Gauge Cutters | Ф19 mm ( 8 ) |
| Conical Cutters | / |
| Nozzles | 6Standard Series +6 Injection |
| Gauge Length | 3",Options available |
| Junk Slot Area | 51.2 in2 |
| Bit Connection | 6-5/8" API REG |
| Bit Length | Make-Up: 15.7" Overall: 20.7" |
| Fishing Neck | Diameter: 8" Length: 3.7" |
Recommended Operating Parameters
| Flow Rate | 38~62LPS |
| Rotary Speed | 60~300 RPM |
| Weight-on-Bit | 20~160 KN |
| Max. Weight-on-Bit | 180 KN |
| Make-Up Torque | 49.6~51.4KN.m |
