- Product category：Impregnated Diamond Bits
- Name：6-1/2"DK708TSP
- Product Type：06501
- Hits：1513
Introduction

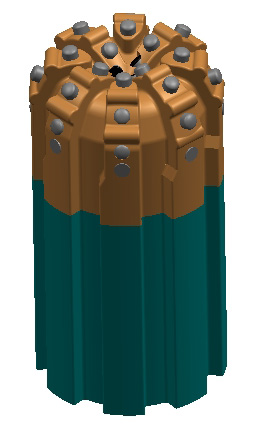

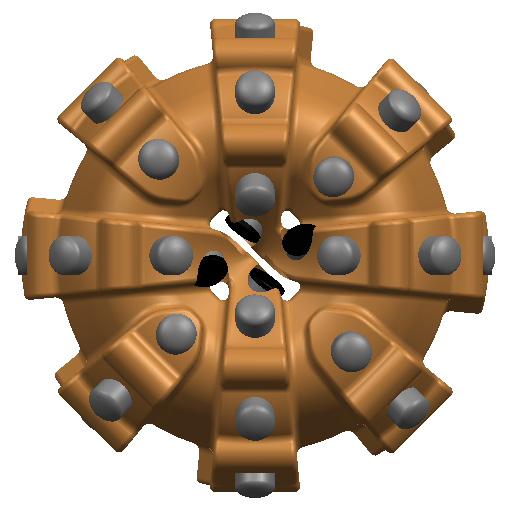

6-1/2" DK708TSP
Recommended Operating Parameters
| Blade Count | 8 Bldes |
| AVG SPC | 116 |
| Cutters（QTY） | Ф10 mm ( 4 ) |
| DHC-V（QTY） | Ф13 mm ( 24 ) |
| DHC-G（QTY） | Ф13 mm ( 16 ) |
| DHC-H（QTY） | Ф13 mm ( 24 ) |
| Nozzles | 8 Fixed+1Center |
| Gauge Length | 4.5", Protection:4.5" Options available |
| Junk Slot Area | 8 in2 |
| Bit Connection | 4-1/2" API REG |
| Bit Length | Make-Up: 12" Overall: 16.2" |
| Fishing Neck | N/A |
Recommended Operating Parameters
| Flow Rate | 10~25 LPS |
| Rotary Speed | 300~1000 RPM |
| Weight-on-Bit | 10~50 KN |
| Make-Up Torque | 6.90~10.23KN.m |
